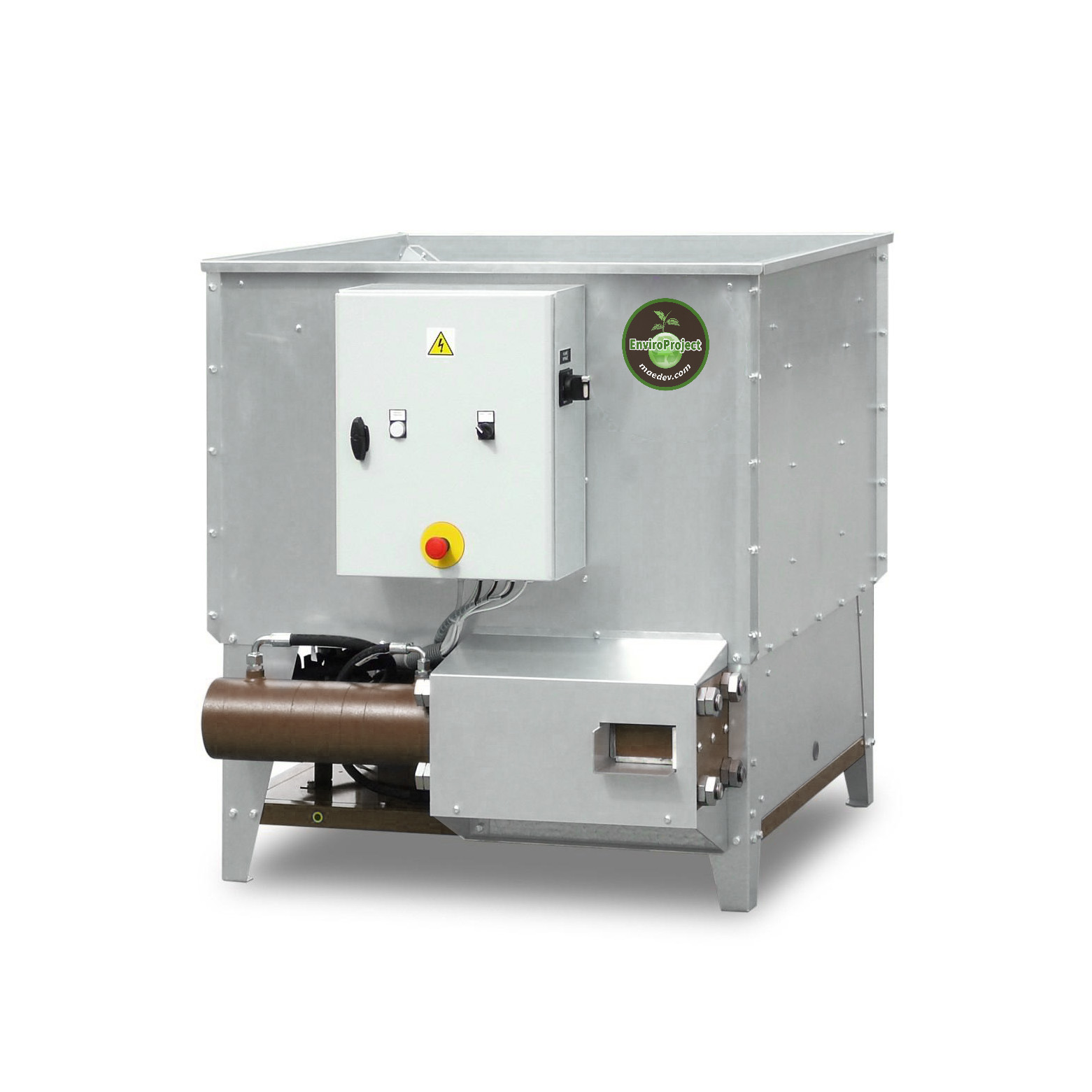

Compact A-TYPE 30 Automatic Briquette Machine

A-TYPE 30 briquette machine is suitable for small and middle workshops. It is a compact briquette machine with low power consumption. Our goal was to design a press with the utilisation of new technical solutions which would not decrease its quality and properties, but would substantially reduce its price while keeping low consumption of electric power.

Description


New technical solutions

Simple control, low consumption – The press is controlled by only one switch. Programmable control system developed exclusively for this press ensures all necessary automatic functions and enables unattended operation.



The press stops automatically when the material in the hopper is processed. The machine is driven by a hydraulic unit with 2.4 kW electric motor.



Automatic Briquette machine - Hopper - BottomUnique design of the press bottom – Stepped design of the bottom of the press hopper ensures optimal supply of material to the shaft of the pressing chamber feeder from two sides and perfect emptying of the chamber.



A square hopper of the volume of 0.6 m3 has one mechanically driven extracting cutter with five arms. The falling material has enough time and space to get into the drawer with the help of the extracting cutter with a defined feed.



Pressing against fixed barrier – The pressing chamber has a cylindrical shape, and is closed by a solid barrier from one side. Each briquette is pressed by maximum possible force of the press. The output of the press depends on specific weight of the material. Briquettes fall from the pressing chamber in the prepared bag.



Working environment – A-TYPE 30 cannot be connected to an exhaust system, and cannot be installed outdoors. In case that the hopper would be connected to a pressure system, the material could be unpleasantly blown from the pressing chamber, which is opened during one step of the working cycle. With open hopper the risk is minimized.



Materials for pressing without binders – The pressed material should meet the following conditions: moisture 8 to 15 %, dimensions smaller than 15 mm, and bulk density at least 70 kg/m3



  • Sawdust
  • Shavings
  • Paper



Briquette properties – The briquettes have the shape of a cylinder of diameter 62 mm, length 20 to 30 mm, and heating value of 15 to 18 MJ/kg. They can be combusted in all types of stoves, boilers and incinerators for the combustion of solid fuels. Their high heating value is better used in gasifying boilers. The volume of waste is decreased eight times by briquetting, and so waste transport and storage are cheaper. A big benefit of the briquetting presses is the utilisation of waste and reduction of dust in plants.





Standard equipment



  • Press hopper volume 0.6 m3



Main advantages



  • Favourable price
  • Low power consumption
  • High-quality workmanship based on standardized components
  • Simple installation
  • Small dimensions
  • Easy operation



Model Diameter of briquette Capacity kg/h Power input Weight of machine
A-TYPE 30 62 mm up to 30 2.4 kW 385 kg







Technical and operating conditions



The specific weight of the pressed briquette 700 – 1100 kg/m3
Maximum operating pressure 180 bar (18 MPa)
Maximum operating temperature 60 °C
Machine working environment +5 – +35 °C
Permissible moisture of input material 8-15 hm%





General technical parameters



Supply voltage 400 V
Control voltage 24 V
Electrical element protection IP54
Machine noise level 75 dB
Operating time of the press 1 shift – limited by oil temperature







Dimensions of the machine





Hopper capacity Length Width Height Hopper Noise Level
0.6 m3 1395 1060 1140 1000 75 dB







Warranty 12 months.

Spare parts offered.
